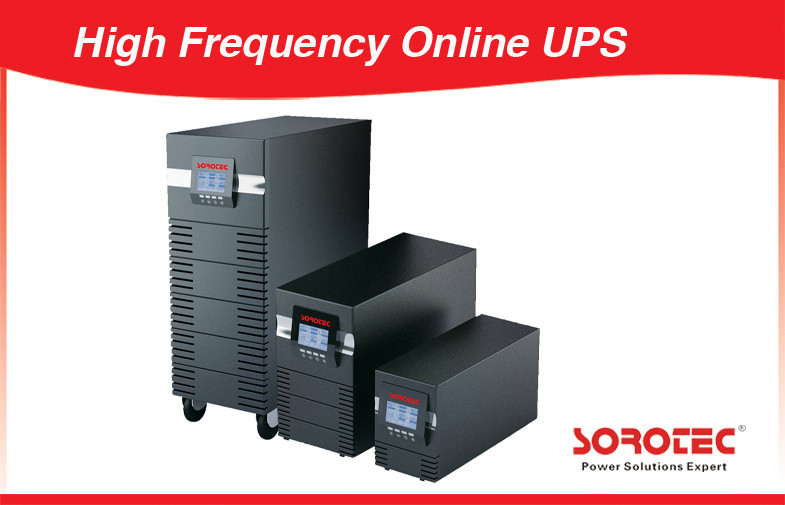

Pure Sine Wave High Frequency online UPS, Uninterrupted Power Supply 3KVA / 2700W, RS232

Pure Sine Wave High Frequency online UPS, Uninterrupted Power Supply 3KVA / 2700W, RS232

  • Pure Sine Wave High Frequency online UPS, Uninterrupted Power Supply 3KVA / 2700W, RS232
  • Pure Sine Wave High Frequency online UPS, Uninterrupted Power Supply 3KVA / 2700W, RS232
Pure Sine Wave High Frequency online UPS, Uninterrupted Power Supply 3KVA / 2700W, RS232
Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: HP9316C 10 - 20KVA
Payment & Shipping Terms:
Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Contact Now
Detailed Product Description
Rated Voltage: 380VAC 3phase With Ground Rated Frequency: 50/60HZ
VoltageRange: 304~478VAC(±3VAC) FrequencyRange: 50HZ:(46~54HZ);60HZ:(56HZ~64HZ)
Power Factor: 0.98 Voltage Regulation: 208/220/230/240X(1±2%)VAC
Frequency Regulation: 50/60HZ±0.05 Hz Power Factor: 0.7
Overload Capability: 110%~150% For 30s Change To Bypass Model, Recover After Load Normal Current Crest Ratio: 3:1
High Light:

pure sine wave ups

,

online high frequency ups

Pure Sine Wave High Frequency online UPS, Uninterrupted Power Supply 3KVA / 2700W, RS232 HP9316C:





Uninterrupted Power Supply Key Features:

1.Large blue back light LCD for detailed Real-time UPS status display.



2.Advanced online pure sine wave power supply system, with bypass repair switch, It can provide a reliable, high quality AC power source to the precision equipments, can be used widely in different fields.



3.Widely used to computer equipments, telecommunication systems and Industrial automatic control

equipments.



4.Truly online design, different from offline, it can adjust the input voltage, filtering, when the AC break off, the UPS will provide an uninterruptible power source from the backup batteries.



5.UPS will change to bypass mode when overloading or inverter fault, when overloading remove, UPS will turn to inverter mode automatically.



6.N+N Parallel Redundancy and Capacity expansion for 6-20K(up to three units)





Trendy & Elegant LCD Design for real-time UPS system information:

Pure Sine Wave High Frequency online UPS, Uninterrupted Power Supply 3KVA / 2700W, RS232 0

Pure Sine Wave High Frequency online UPS, Uninterrupted Power Supply 3KVA / 2700W, RS232 1



Uninterrupted Power Supply Applications:

Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…





Technical Specifications of Online UPS HP9316C 10-20K (3Ph in/1Ph out)

Model

HP9316C 10-20KVA

10KT-XL

15KT-XL

20KT-XL

Rated Power

10KVA/7000W

15KVA/10500W

20KVA/14000W

Rated Voltage

380VAC 3phase with ground

Rated Frequency

50/60HZ

Input

VoltageRange

304~478VAC(±3VAC)

FrequencyRange

50HZ:(46~54HZ);60HZ:(56HZ~64HZ)

Power Factor

0.98

Output

Voltage Regulation

208/220/230/240X(1±2%)VAC

Frequency Regulation

50/60HZ±0.05 Hz

Power factor

0.7

Voltage distortion

Linear load<3%    Non-Linear load<6%

Overload

Capability

110%~150% for 30s change to bypass model, Recover after load normal

Current Crest Ratio

3:1

Transfer time

0ms(AC mode→ Battery mode)

Battery

DC Voltage

240VDC

Recharge Current

4.2A

Display

LCD

Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate.

Communication

Interface

Smart RS232, SNMP(optional) , USB(optional)

Environment

Operation Temperature

0~40℃

Humidity

0~95%non-condensing

Storage Temperature

-25℃~55℃

Sea level elevation

<1500m

Noise Level(1m)

<55dB

Physical Characteristic

Weight(KG)

N.W.

47

54

54

G.W.

53

60

60

Dimension(D x W x H)mm

570X260 X717




Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2  GB/17626.2~5/IEC61000-4-2~5     SAFETY:GB4943

Note: Product specifications are subject to change without further notice
