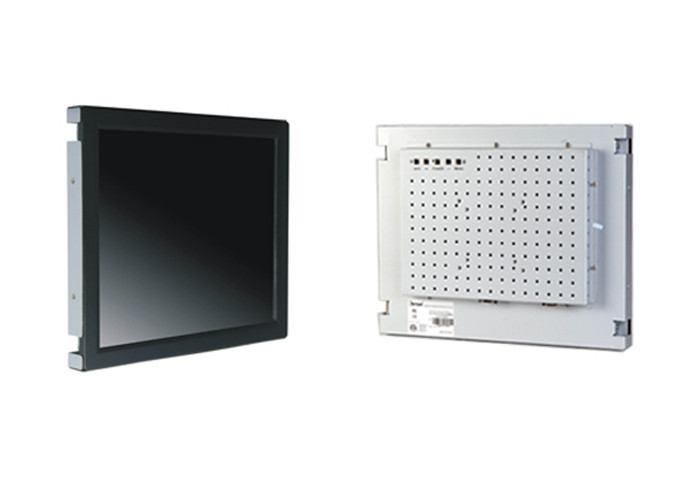

19 Inch Dual Point Open Frame Touch Monitor with 75/100 VESA Mounting

19 Inch Dual Point Open Frame Touch Monitor with 75/100 VESA Mounting

  • 19 Inch Dual Point Open Frame Touch Monitor with 75/100 VESA Mounting
  • 19 Inch Dual Point Open Frame Touch Monitor with 75/100 VESA Mounting
19 Inch Dual Point Open Frame Touch Monitor with 75/100 VESA Mounting
Product Details:
Place of Origin: China
Brand Name: TMTOUCH
Certification: CE,ROHS, FCC
Model Number: OF1910A
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Protective film +pearl wool + honeycomb carton
Delivery Time: 5days
Payment Terms: TT/LC
Supply Ability: 5,000set per month
Contact Now
Detailed Product Description
Highlight:

waterproof touch monitor



19 Inch Dual Point Open Frame Touch Monitor with 75/100 VESA Monuting



Advantage

  1. A-class LCD panel with high brightness, high contrast ratio and broad viewing angle
  2. Compact and slim profile for easy integration from side, top and bottom
  3. Provide DVI/VGA dual-way video input format



Specification



Model Name OF1910A
Size 19”diagonal
LCD panel A-grade TFT panel
Aspect Ratio 4:3
Active Area 376*301mm
Support Resolution 1280*1024
Support Colors 16.7M
Brightness(Typ.) 300nits
Response Time(Typ.) 5ms
Viewing Angle 160/160
Contrast Ratio(Typ.) 800:1
Video Input Dual Analog RGB and DVI video format
Frequency(H/V) 30~80KHz / 60~75Hz
Power Supply

Input:100-240VAC, 50-60 Hz

Output:12V at 4 amps max

Temperature

Operating:0~50°C

Storage:-20~60°C

Humidity

Operating:20%~80%

Storage: 10%~90%

MTBF 50,000 hours
Weight N.W.:5KG G.W.:7.2KG (Approx)
Power Consumption 40W Max
Touch Screen TMtouch 17”3/4/6mm compact SAW touch screen
Touch Interface USB/Serial(RS232)
Touch Response Time USB/Serial:8.4/10.4ms
Approved Certificate FCC,CE,RoHS





Accessories



Power Cable: A North American power cable or an European power cable is included according to the end user's area.



Power Supply Brick: A power supply brick is included.



Touch/Video/DVI Cables:

1*Detachable serial or USB touch cable,

1*video cable

1*DVI cable



L-brackets: Four standard L-brackets are included.
