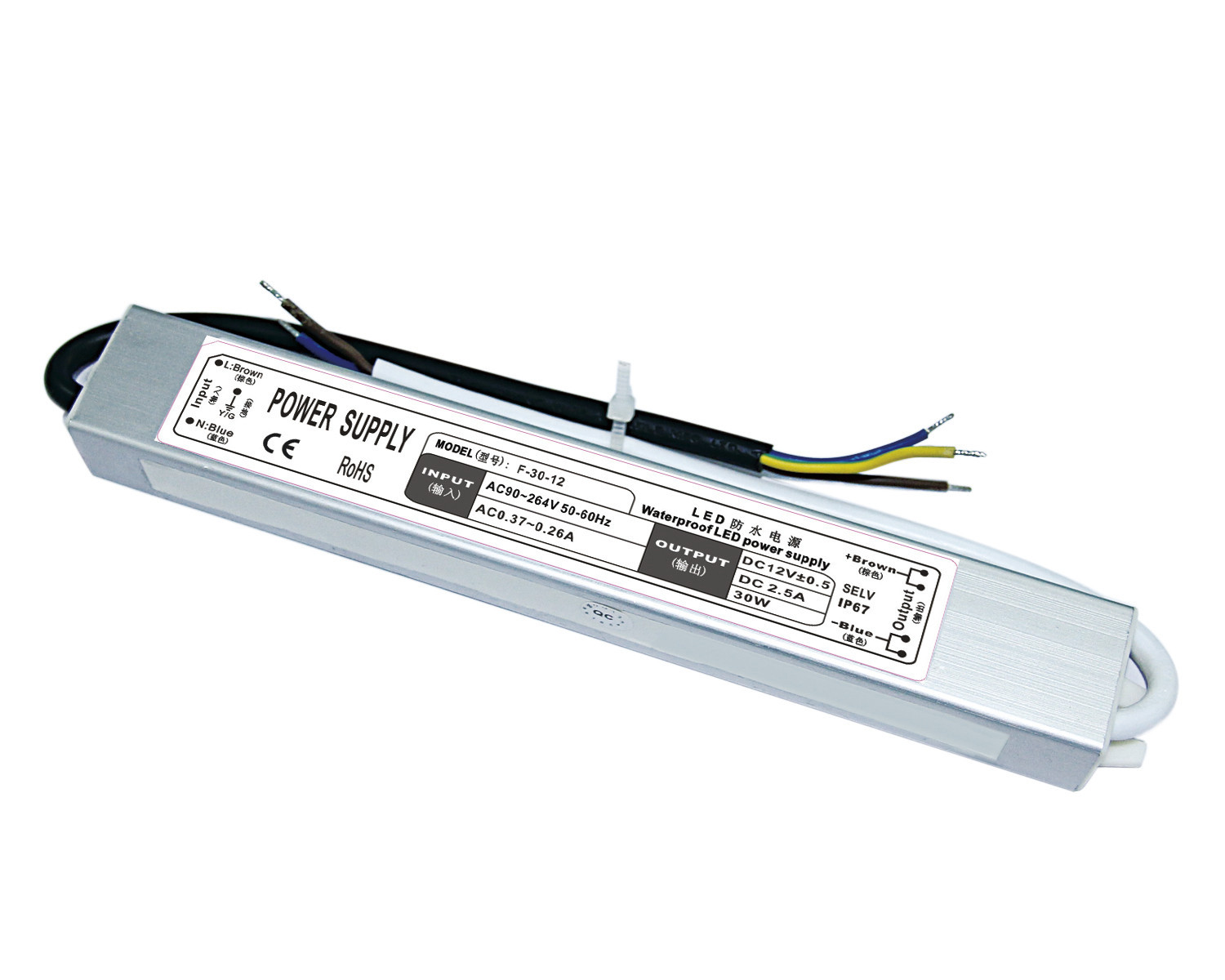

IP68 30W 2.5A Waterproof Led Power Supply With Overload / Overheat Protection

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	DongDaHua
Certification:	CE & ROSH
Model Number:	F-30-12

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Factory Price
Packaging Details:	As for your requirement
Delivery Time:	As per your order quantity
Payment Terms:	T/T & L/C
Supply Ability:	4000 Pieces/Day

Contact Now

Detailed Product Description

Highlight:	12v dc LED driver

IP68 30w 2.5 A Waterproof Led Power Supply With Overload / Overheat Protection

Quick detail:

Power: 30W

Current: 2.5A

Output: DC 12V-24V

Input: 176-264VAC

IP: IP68

Warranty: 2 years

Description:

Double AC input voltage controlled by switch

Protection: short-circuit, overload, overheat

Naturally air cooled

LED power indicator

100% full-load aged

Holds on 300 VAC surge for 5 sec.

Working temperature up to 60℃

5G vibration tested

High efficiency, long life span, and high reliability

Specifications:

Product No.		F-30-12	F-30-24
Output	DC voltage	12V	24V
	Capacity of current	2.5A	1.25A
	Range of current	0-2.5A	0-1.25A
	Power	25W	25W
	Noise max. 2	200mVp-p	240mVp-p
	Voltage adjustment	11.6-12.4v	23.3-24.4V
	Voltage accuracy 3	±3%	±3%
	Linear Adjustment 4	±0.5%	±0.5%
	Load adjustment 5	±2%	1.50%
	Start and rise time	1000ms,30ms/230VAC 1000ms,30ms/110V
	Hold time (Typ)	50ms/230VAC 10ms/115AC
Input	Voltage range	90-264VAC
	Frequency range	47-63HZ
	Efficiency (Typ)	82%	83%
	AC current (Typ)	0.37A/90V 0.26A/220V
	Surge current (Typ)	Cold start: 65A/230VAC
	Current leak	<2mA/240VAC
Protection	Overload	Greater than 105% of capacity
	Overload	Protection mode: hiccup, automatic restoration after abnormity removed
	Overvoltage
	Overvoltage
	Overheat	Overheat protection starts when temperature in transistor over 140℃
	Overheat	Automatic restoration when temperature is back normal
Environment	Working temp.	-20～+60℃ (see tenuation curve)
	Working humidity	20～90% RH, without condense
	Storage temp & hmdty	-40～+80℃
	Temp. coefficient	±0.03%/℃ (0～50℃)
	Vibration proof	10～500Hz, 5G 10min / cycle,X,Y,Z axes 60 min each
Safety reg. & EMC	Safety regulation	GB195110.1-2004/IEC61347-1:2003 CE(EMC+LVD)
	Voltage proof	I/P-O:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	insulation resistance	I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/70% RH
	EMC irradiation	EN 55015:2006;EN61000-3-2:1995+A2:2005
	EMC disturbance proof	EN 61000-3-2:2006;
	Dimensions	2183020(LWH)
	Packing	0.24Kg

Competitive Advantage:
•IP67 protection grade
•100% load test, built-in EMI filters
•Full range of input voltage
•output voltage accurate and stable
•Output over-voltage, over-current and short-circuit protection
•Output low ripple and noise
•Two year warranty
•Average working no trouble ＞50, 000 hours

Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
