| Place of Origin: | Shenzhen China |
| Brand Name: | DongDaHua |
| Certification: | CE & ROSH |
| Model Number: | F-25-12 |
| Minimum Order Quantity: | 50PCS |
|---|---|
| Price: | Factory Price |
| Packaging Details: | As for your requirement |
| Delivery Time: | As per your order quantity |
| Payment Terms: | T/T & L/C |
| Supply Ability: | 4000 Pieces/Day |
| High Light: | LED Light Power Supply,12 volt led driver |
||
|---|---|---|---|

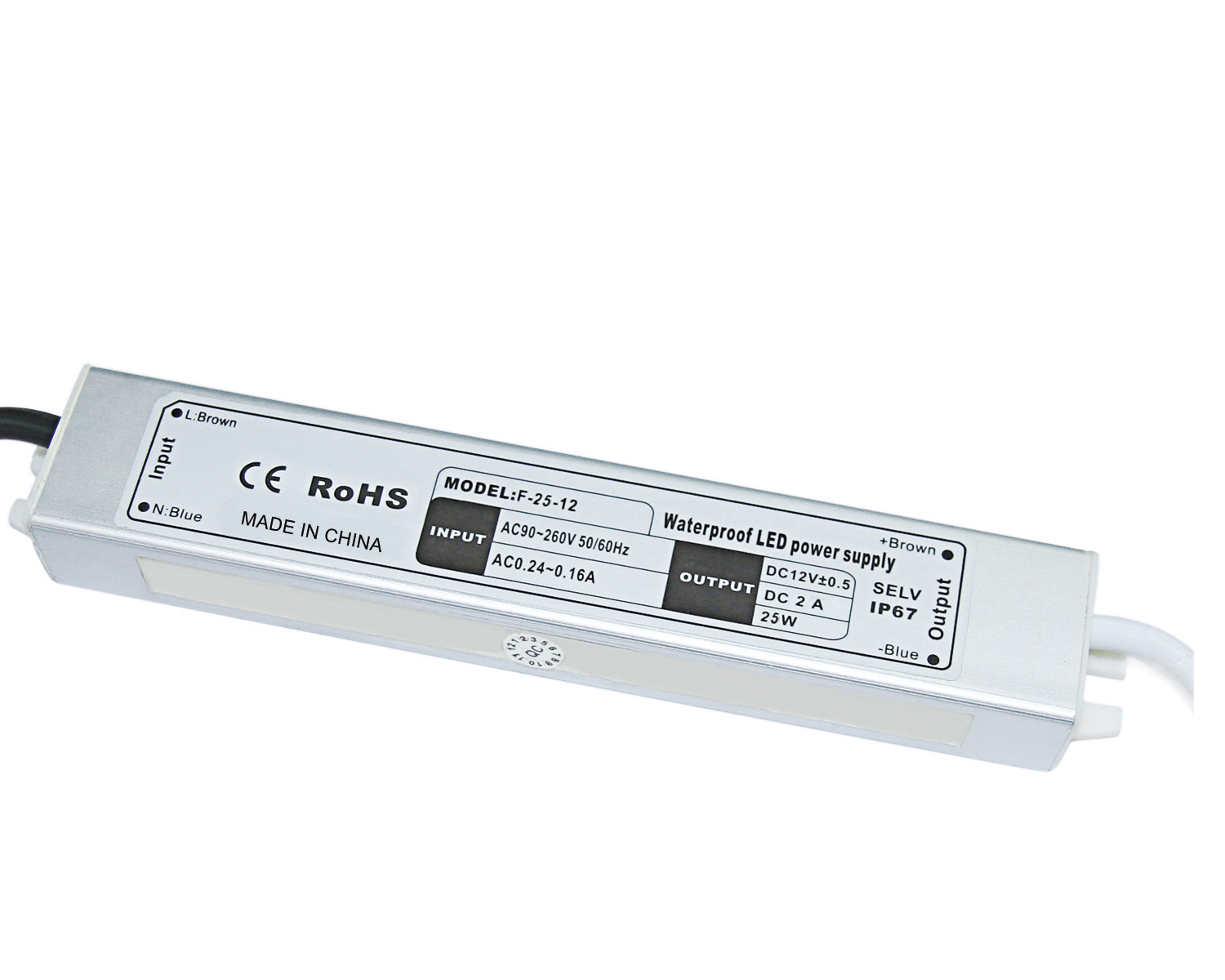

High Efficiency Input AC 110-264V 25W Waterproof LED Driver For Led Strip Light
Quick detail:
Power: 25W
Input: AC110-264V
Output: DC 12V 24V
Size: 195*35.4*35.4(mm)
Certificate: CE&ROHS
Warranty: 2 years
Description:
1. Protections :Short circuit/Overload/Over temperature
2. Cooling by free air convection
3. IP67 design for indoor or outdoor installations
4. 100% full load burn-in test
5. Suitable for LED lighting
6. Products through CE& ROHS certification
7. Two years warranty
Specifications:
| Product No. | F-25-12 | F-25-24 | |||||
| Output | DC voltage | 12V | 24V | ||||
| Capacity of current | 2.1A | 1.1A | |||||
| Range of current | 0-2.1A | 0-1.1A | |||||
| Power | 25W | 25W | |||||
| Noise max. 2 | 200mVp-p | 240mVp-p | |||||
| Voltage adjustment | 11.6-12.4v | 23.3-24.4V | |||||
| Voltage accuracy 3 | ±3% | ±3% | |||||
| Linear Adjustment 4 | ±0.5% | ±0.5% | |||||
| Load adjustment 5 | ±2% | 1.50% | |||||
| Start and rise time | 1000ms,30ms/230VAC 1000ms,30ms/110V | ||||||
| Hold time (Typ) | 50ms/230VAC 10ms/115AC | ||||||
| Input | Voltage range | 170-264VAC | |||||
| Frequency range | 47-63HZ | ||||||
| Efficiency (Typ) | 82% | 83% | |||||
| AC current (Typ) | 0.24A/170V 0.21A/220V | ||||||
| Surge current (Typ) | Cold start: 65A/230VAC | ||||||
| Current leak | <2mA/240VAC | ||||||
| Protection | Overload | Greater than 105% of capacity | |||||
| Protection mode: hiccup, automatic restoration after abnormity removed | |||||||
| Overvoltage | |||||||
| Overheat | Overheat protection starts when temperature in transistor over 140℃ | ||||||
| Automatic restoration when temperature is back normal | |||||||
| Environment | Working temp. | -20～+60℃ (see tenuation curve) | |||||
| Working humidity | 20～90% RH, without condense | ||||||
| Storage temp & hmdty | -40～+80℃ | ||||||
| Temp. coefficient | ±0.03%/℃ (0～50℃) | ||||||
| Vibration proof | 10～500Hz, 5G 10min / cycle,X,Y,Z axes 60 min each | ||||||
| Safety reg. & EMC | Safety regulation | GB195110.1-2004/IEC61347-1:2003 CE(EMC+LVD) | |||||
| Voltage proof | I/P-O:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||||
| insulation resistance | I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/70% RH | ||||||
| EMC irradiation | EN 55015:2006;EN61000-3-2:1995+A2:2005 | ||||||
| EMC disturbance proof | EN 61000-3-2:2006; | ||||||
| Dimensions | 195*35.4*35.4(L*W*H) | ||||||
| Packing | 0.22Kg | ||||||
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
Competitive Advantage:
•IP67 protection grade
•100% load test, built-in EMI filters
•Full range of input voltage
•output voltage accurate and stable
•Output over-voltage, over-current and short-circuit protection
•Output low ripple and noise
•Two year warranty
•Average working no trouble ＞50, 000 hours
Quality assurance:
Delivery:
