Name: 200 Watt Waterproof LED Driver
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: F-200-12
Availability: InStock

Home Products Waterproof LED Driver

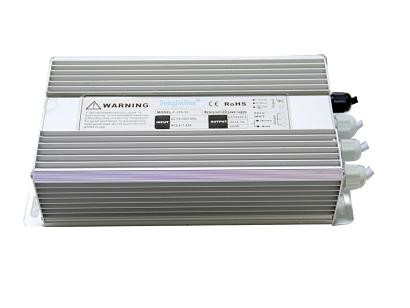

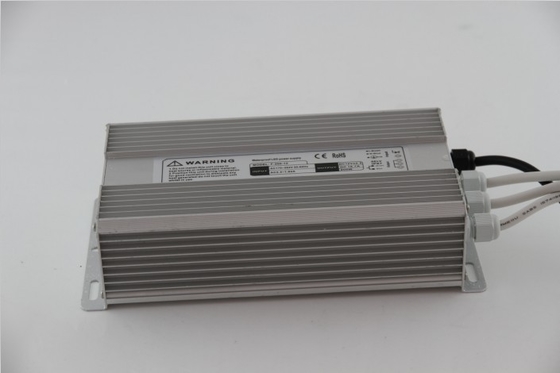

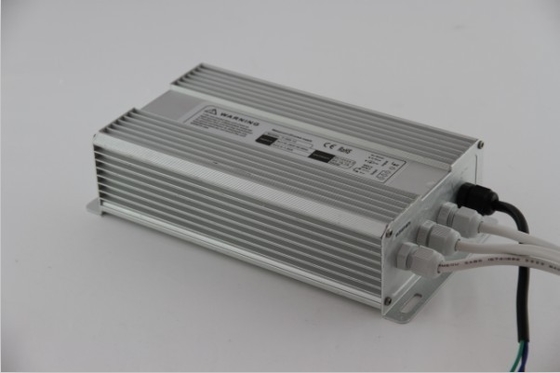

200 Watt Waterproof LED Driver

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	DongDaHua
Certification:	CE & ROSH
Model Number:	F-200-12

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	Factory Price

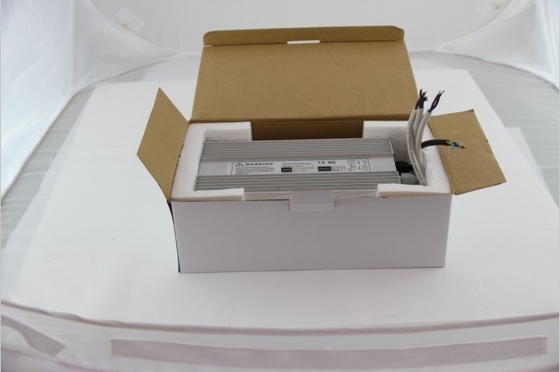

Packaging Details:	Based on your requirement
Delivery Time:	Based on your order quantity
Payment Terms:	T/T & L/C
Supply Ability:	4000 Pieces/Day

Contact Now

Detailed Product Description

Product Name:	Waterproof LED Driver	Input Voltage:	AC 170V---264V
Input Frequency:	47-63Hz	Output Power:	200W
Output Voltage:	12V DC	Certification:	CE & ROSH
Highlight:	LED Light Power Supply

Overload Protection Waterproof LED Driver Power Supply 200W 12V DC 16.7A IP68 EN1122

Competitive Advantage:
•IP67 protection grade
•100% load test, built-in EMI filters
•Full range of input voltage
•output voltage accurate and stable
•Output over-voltage, over-current and short-circuit protection
•Output low ripple and noise
•Two year warranty
•Average working no trouble ＞50, 000 hours

Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

Specifications:

Product Electric Parameters
Input specification	Input voltage		AC170V---264V
	Input frequency		47-63Hz
	Input surge		20A@120VAC 40A@230VAC
Output specification	Start-up time		≦1S (230V Input, Io=100%)
	keep time		≧20mS (230V Input, Io=100%)
	Voltage regulation		(full)≦0.5%
Protection function	Overload protection		105% - 150% rated power, automatic recovery
	Over-voltage protection		105% - 150% of the rated voltage
Insulation intensity	Input---output		1500VAC/1min
	Input--ground		1500VAC/1min
	Output---ground		500VAC/1min
Safety standards	According with EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards.
E M C standards	According with EN55022 class A EN61347-2-13:2008 standards
Environmental	working temperature	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature	- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	height above sea level	≦2000M
Structure	Size (mm)	230(L)120(W)58(H)
Cooling method	Cooling method	Natural cooling air convection
Weight	2.4KG/Pcs
