230V / 240V 30W LED Security Floodlight Waterproof LED Flood Light For Commercial Lighting

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Xintianwell
Certification:	CE/PSE/RoHS
Model Number:	XTFL-B

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	1pcs 422913cm
Delivery Time:	7-14 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	3,000pcs per month

Contact Now

Detailed Product Description

Lamp Power:	30 Watts	Luminous Flux:	3300lm ±5%
Chip Type:	COB	Color Temperature:	3000-6000K
Input Voltage:	AC100-240V / AC180-260V	Driver:	Waterproof Inside Driver
CRI:	>75Ra	Power Factor:	0.9
Size:	226mm*87mm	Material Of Shell:	Aluminium Alloy
Reflector:	Nanostructured Coating	Cover:	Anti-explosion Glass
Light Design:	Transmission-type
High Light:	commercial outdoor led flood light fixtures , warm white led outdoor flood light

Nano Reflector 30W Outdoor LED Flood Lights Scoop Lighting Waterproof IP65

Quick Details:

Model Number: XTFLB-30W
Item : LED Flood Light
Lamp Power: 30W
Input Voltage: AC100-240V
LED Light Source: COB Chip
Color Temperature(CCT): 3000K~6000K
Luminous Flux: 3300lm ±5%
Efficiency: 110 lm/W
CRI: >75Ra
Temperature(°C):-30°C~60°C

Specifications:

Item Type	XTFLB-30W
Power	30W
Replacement	80-100W
Input Voltage	AC 100-240V
Frequency	50 / 60Hz
Size	226mm*87mm
Chip Type	COB
LED Quantity	1 pc
Luminous Flux	3300lm ±5%
Light Efficiency	110 lm/w
Color Temperature	3000-6000K
Color Rendering Index	>75Ra
Beam Angle	120°
Working Temperature	-30℃~60℃
Working Lifetime	40,000 hours
Material of Cover	Anti-explosion Glass
Cover Type	Transparent
Lamp Shell Color	Black or White or Silvery
Material of Shell	Aluminum Alloy
Driver	Waterproof Internal Driver
Lamp Weight:G.W./N.W.	1.66KG
Pcs/CTN	1pcs/Carton
Color	Black and White

Featrues of waterproof 50 Watts led flood light:

Hight transmittance

Super bright

Long life span

High luminous

Aluminum + toughen glass

Low light decay

Good heat dissipation

Energy saving

Competitive Advantage:

1, Aluminum Alloy Chassis is good for heat dissipation;
2, The driver has a unique automatic limiting current function, which can automatically reduce the current and voltage when the temperature reaches the highest temperature;
3. Using excellent explosion-proof glass cover, more safety in use;
4. IP65 makes sure that this lamp can be used outdoor;
5.Using Nanostructured Coating on the reflector is one of new-tech in the world.

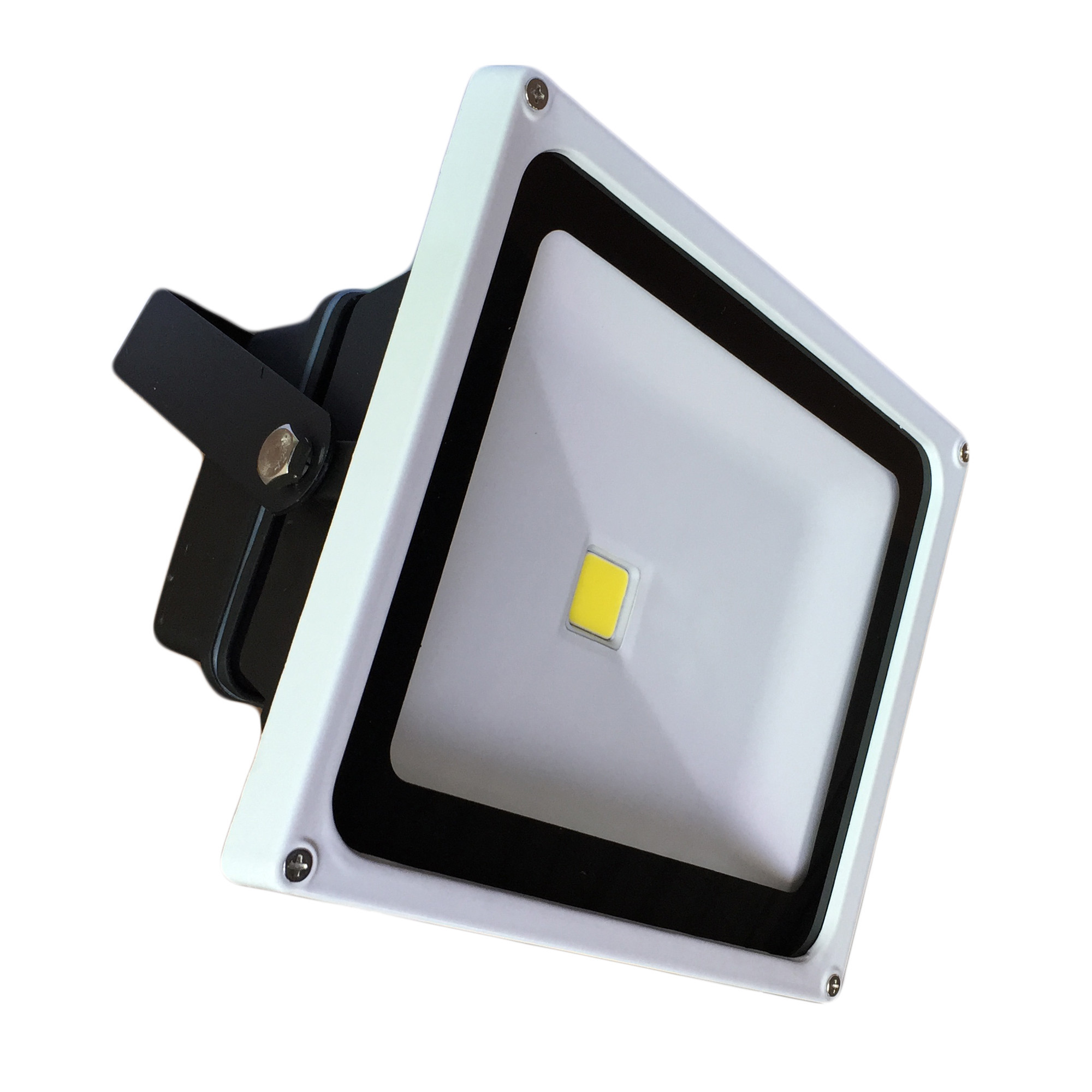

Picture of 30W LED Flood Light:

230V / 240V 30W LED Security Floodlight Waterproof LED Flood Light For Commercial Lighting 0

Color Temperature Select:

230V / 240V 30W LED Security Floodlight Waterproof LED Flood Light For Commercial Lighting 1

230V / 240V 30W LED Security Floodlight Waterproof LED Flood Light For Commercial Lighting 2

1.Switch off the electrical power.
2.Connect the panel light power supply to the power (85v-265v),be sure it is stable,and no wire is naked.
3.Connect the Power supply output DC end to the light input DC end,be sure it is stable.
4.Install the panel light to the reasonable place
5.Turn on the power supply,it can be used.

Application:

Commercial lighting/ Office lighting
Warehouse lighting/Supermarket lighting/Meeting rooms
Hotels lighting/Homes lighting/Hospitals lighting/Residential/institition Building
Classrooms lighting/Conference rooms lighting/Other indoor lighting places
