| Place of Origin: | China |
| Brand Name: | Future View/OEM |
| Certification: | CE & ROHs |
| Model Number: | LED Floodlight |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Box or Carton |
| Delivery Time: | Depends on qty |
| Payment Terms: | T/T |
| Supply Ability: | 5000-7000 PCS/month |
| IP Rate: | IP65 | Type: | LED Floodlight |
|---|---|---|---|
| LED Source: | High Power LED | Lamp Power: | 20W |
| Input Voltage: | AC 85-265V | Color Temperature: | W/WW |
| Lifetime: | 50000 Hours | Warranty: | 3 Years |
| High Light: | led flood lights outdoor,rgb led flood light |
||

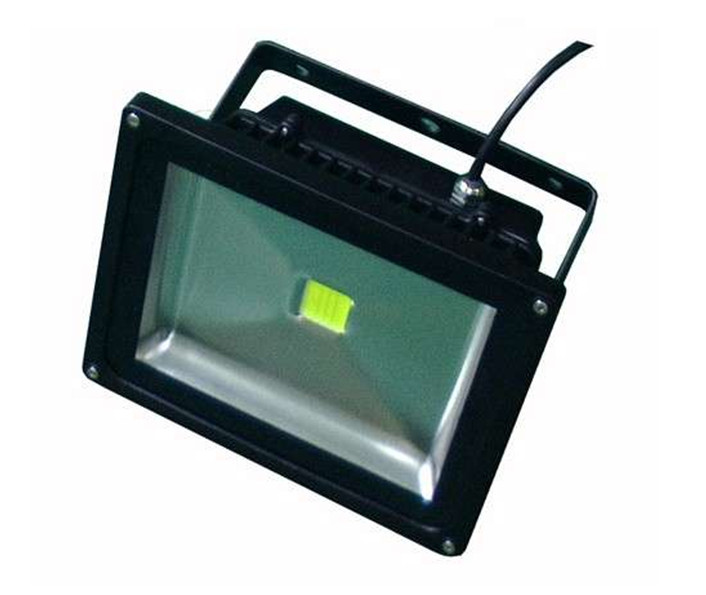

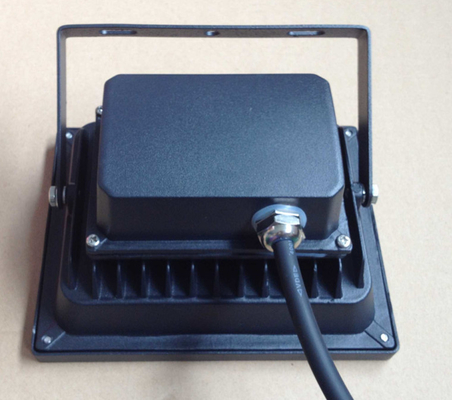

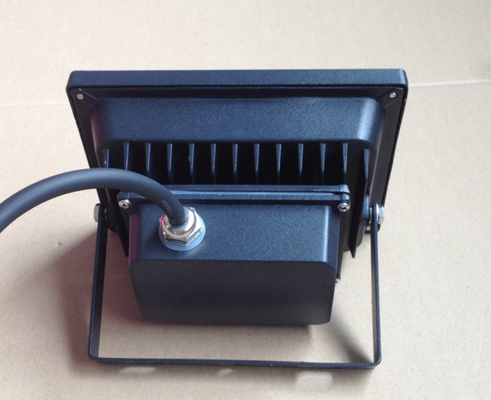

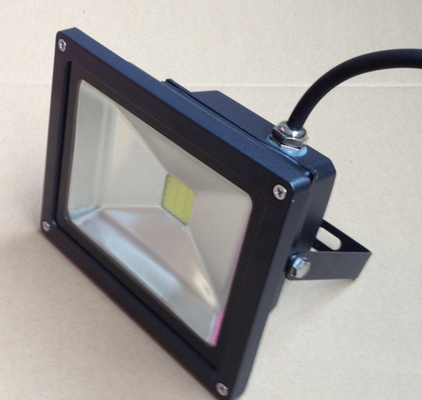

High Lumen Industrial Waterproof LED Flood Light / Floodlight 20 W
Applications:
1 Floodlighting, wall washing for bars, clubs, hotels, stages, parks, plazas,
2 Commercial building facade, mosques, museums, art galleries
3 Advertising boards, Garden designs
4 Restaurant , hospital
Quick Detail:
|
Type: |
LED Floodlight |
LED source: |
High power led |
Lamp Power: |
20W |
|
Input Voltage: |
AC 85-265V |
Power Efficiency |
>85% |
Power factor(PF) |
>0.95 |
|
Beam Angle: |
120° |
LED qty: |
1 pc |
Color temperature |
W/WW |
|
Lifetime: |
50,000 hors |
Warranty: |
3 years |
Lamp body Material: |
Aluminum Alloy |
|
Size |
L180*W140*H105mm |
IP rate: |
IP65 |
Certificate: |
CE & ROHs |
Description:
1 CE and RoHS approved.
2 Ip 65 waterproof and durable silicon rubber sealing gasket
3 High efficiency and power factor LED driver.
4 Wide radiation angle, huge lighting area.
5 Start without delay and flicker free.
6 Thermal,shock resistant tempered glass,stainless steel screw
7 Ideal heat dissipation design.
8 Finished with epoxy powder paint,resistant to corrosion
9 Patented fixture design and Led package technology.
10 Energy saving system, saving 60% energy than the conventional Metal halide lamp, Sodium Light or HPS
light.
Specifications:
|
Model Name |
Led floodlight |
|
Input voltage |
AC 85-265V |
|
Power Factor |
>0.95 |
|
LED Qty |
1 pc 20W led |
|
luminous flux |
80-90lm (warm white) |
|
90-100lm(pure white) |
|
|
100-110 lm(cool white) |
|
|
Beam Angle |
120 degree |
|
Color temperature |
2700~3500k(warm white) |
|
4500-5500k(pure white) |
|
|
6000-7000K (cool white) |
|
|
Light Distribution |
Symmetric expression |
|
Light design |
LED + reflector twice luminous intensity distribution |
|
Life time |
>50,000 Hours |
|
Operating temperature |
-20ºC to + 45ºC |
|
Storage temperature |
-25ºC to + 65ºC |
|
IP rate |
IP65 |
|
Certificates |
CE . RoHS |
|
Net Weight |
1.5 KGS |
|
Size |
L180*W140*H105mm |
