| Place of Origin: | China |
| Brand Name: | MF |
| Certification: | CE, RoHS |
| Model Number: | MF-Y020W |
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 43.5*31.2*31.2cm/6pcs, G.W: 12Kg |
| Delivery Time: | Depends on orders |
| Payment Terms: | T/T, Western Union, L/C, Paypal |
| Supply Ability: | 5,000pcs/Month |
| Name: | IP65 Waterproof Led Courtyard Light | Power: | 20W |
|---|---|---|---|
| Input Voltage: | 85-265Vac | IP Rating: | IP65 |
| Efficiency: | 130LM/W | LED Chip: | SAMSUNG |
| Driver: | Meanwell | Application: | Outdoor |
| High Light: | samsung led light,Outdoor LED light |
||

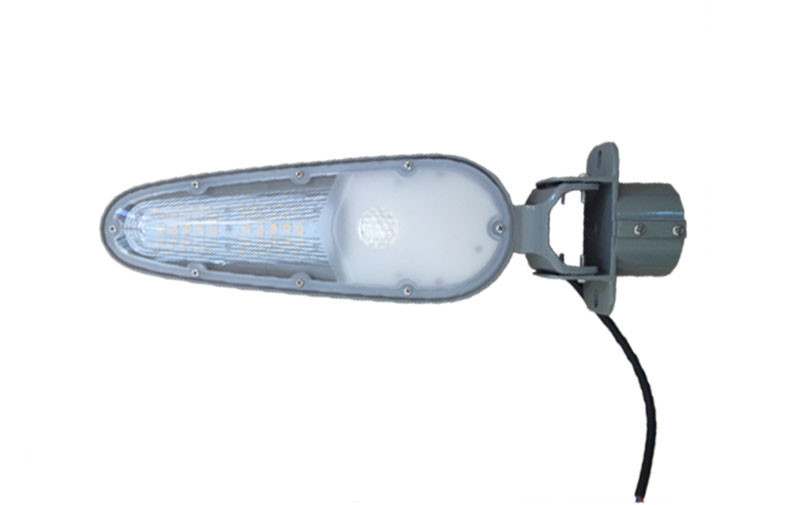

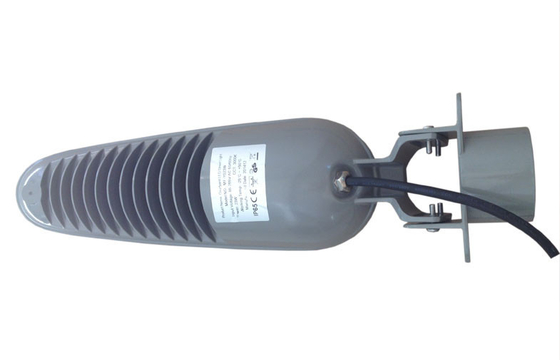

Waterproof LED street light AC85 - 265V 20W 1830LM IP65 Outdoor lED lighting
Quick Detail:
1. 20W LED courtyard light
2. Input: AC 85V-265V, 50/60Hz
3. Luminous Flux:≧1830 Lm
4. CRI: 70
5. Brand chip: SAMSUNG
6. LED Driver: Meanwell
7. Adjustable: -15 to +15
8. IP:65
9. CE, RoHS certificated
Waterproof LED street light , AC85 - 265V 20W 1830LM SAMSUNG Chip IP65 LED Courtyard Light
Description:
Excellent manufacturers of LED street lights in china, Ming Feng Come out LED courtyard light series in 2011. These LED street lighting series combines all street LED lighting features together including economic, long lifespan and environment protection. Applied with the best LED from SAMSUNG, the street light attains over 78 lm/w illumination efficiency. Accelerated by Professional Unique Optical Lens, Ming Feng LED street light distribute all the light onto road with maximum effect.
LED courtyard light embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.
Specifications:
|
Item |
MF-Y020W |
|
Input voltage |
85-265Vac 50Hz/60Hz |
|
LED Power |
20W |
|
Rated Power |
24W |
|
Delivered Flux(Tj80°c) |
1830lm |
|
IP Rating |
IP65 |
|
LED QTY |
40 pcs |
|
Color temperature |
3000K-6500K |
|
LED Chip |
SAMSUNG |
|
LED Driver |
Meanwell |
|
Color Rendering Index |
Ra>70 |
|
Power Factor |
>0.9 |
|
Lifespan |
≥50,000hrs |
|
Operation Environment |
Temperature:-40°C~50°C/Humidity:10%~95% |
|
Material |
Aluminum Alloy |
|
Product Size(mm) |
374(L)*114(W)*112(H) |
|
Packing Size(mm) |
422(L)*148(W)*128(H)/1pcs |
|
Net Weight |
0.9Kg |
|
Gross Weight |
1.1Kg |
|
Certificate |
CE/RoHS |
|
Warranty Period |
5 years |
Competitive Advantage:
1. Die-cast roadway light
2. The light source use 100M/W SAMSUNG chip, the luminaire reach 78M/W
3. Beautiful appearance for the shell
4. High efficiency driver system from Meanwell
5. The product is suitable for use in the streets, walkways, park, garden light, etc
6. Warranty:5 years
Applications:
The product is suitable for use in the streets, walkways, park, garden light, etc
Light Distribution Curve:
Product Size:
Installation Diagram Description:
1. Installed on the pole
2. Install on the wall
